- Designed for critical long-haul applications
- Excellent tensile and crush resistance
- Water-blocked with StaticGEL™ technology
- All-dielectric construction—no earth bonding required
- Optimised for duct and direct-buried deployment
- Resilient in shifting soils and harsh ground conditions
- Compliant with global telecom standards
Progettato per Eccellere
Consegnato con Certezza
Approvvigionamento Semplificato
Pronto per il Deploy Rapido
Pronto per Scalare
Conformità Garantita

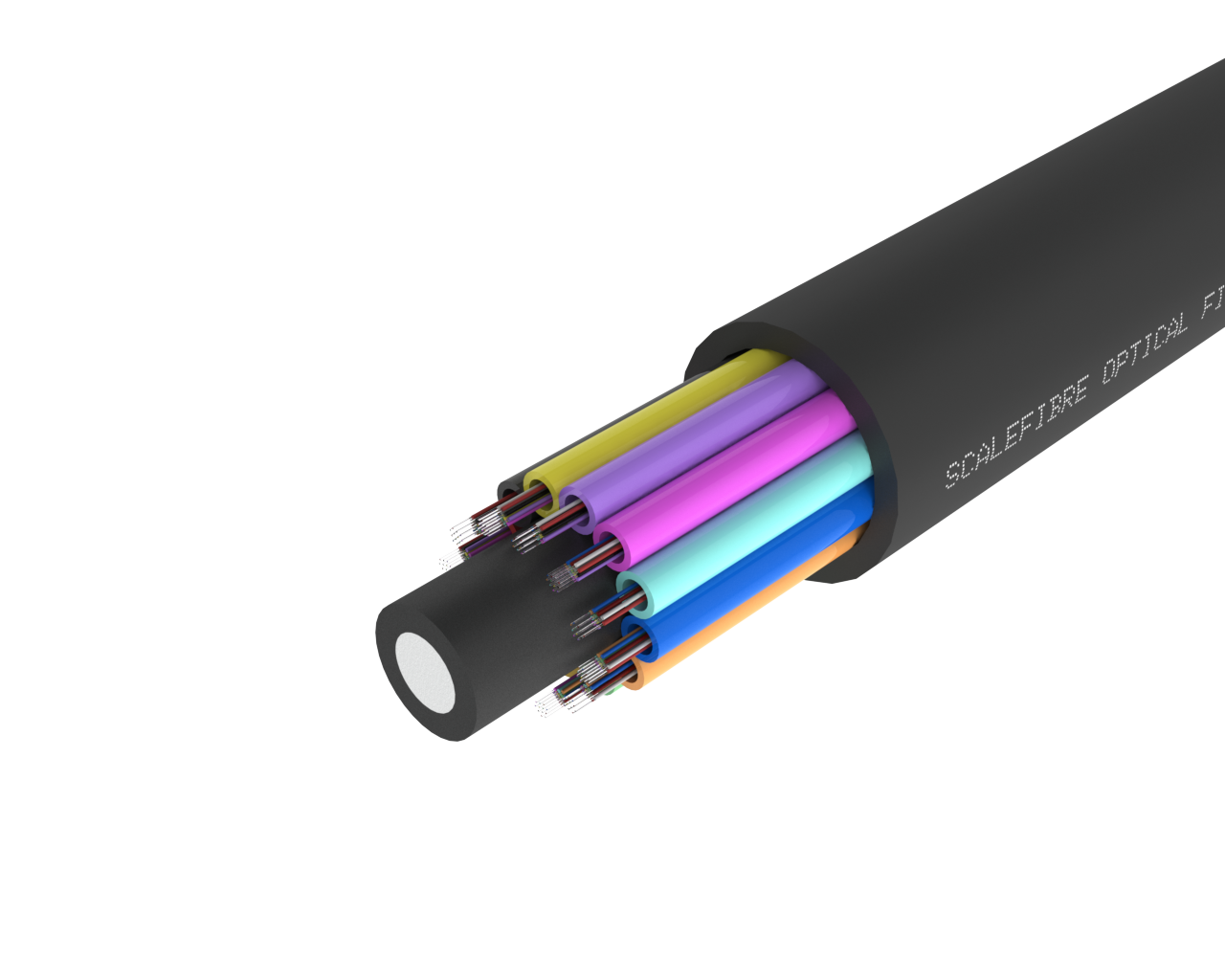

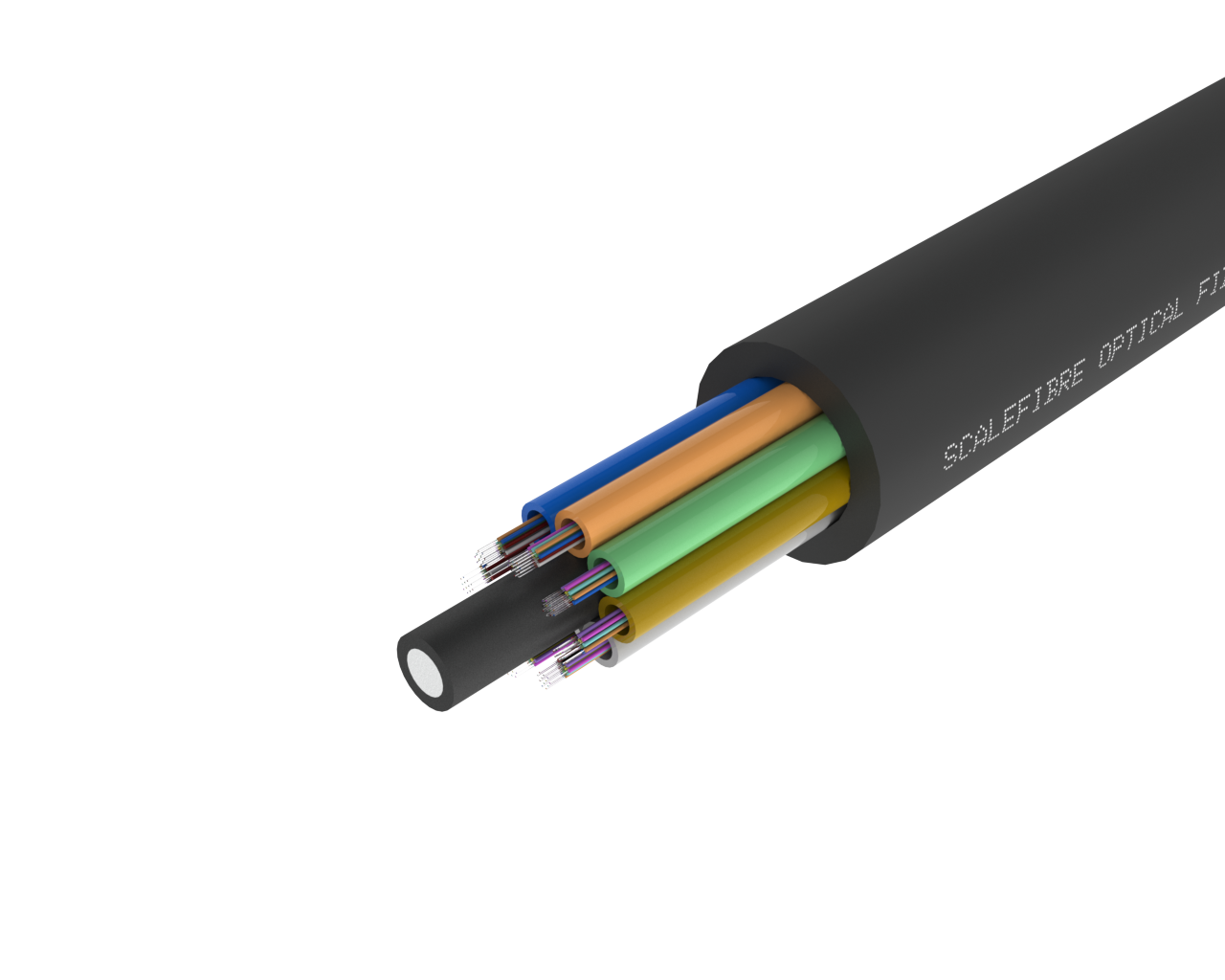

Engineered for situations where network protection is critical, such as long-haul transmission or backhaul routes, this high strength loose tube fibre optic cable features a Polythylene jacket, with increased ability to withstand tensile and cross forces. This construction provides excellent crush resistance, tensile performance, and flexibility for use in duct or direct-buried applications, especially where black, shifting soils are of concern.
The design enables easy handling and fibre protection, while the all-dielectric build eliminates earth bonding/earthing requirements, ideal for telecommunications carriers, transport corridors and environments where cable operation is of critical importance. Optimised for carrier, broadband, transport, utility networks and harsh environments.
This cable is also available with rodent-resistant non-metallic armour.
| Construction Details | |
| Fibre Count | 2–144 fibres |
| Fibre Type | Single-mode G.657.A1 Single-mode G.657.A2 Other specialty optical fibres |
| Tube Type | Polymer Loose Tubes with StaticGEL™ non-flowing gel |
| Jacket Material | Polyethylene |
| Strength Member | Central FRP strength member |
| Outer Diameter | |
| Outer Diameter, 12-72 Fibres | 14.2mm |
| Outer Diameter, 96 Fibres | 15.5mm |
| Outer Diameter, 144 Fibres | 18.2mm |
| Weight | |
| 12-72 Fibres | 160 kg/km |
| 96 Fibres | 190 kg/km |
| 144 Fibres | 262 kg/km |
| Mechanical Characteristics | |
| Max Tensile Load | 6kN |
| Crush Resistance (Short term) | 6kN/100mm |
| Crush Resistance (Long term) | 3kN/100mm |
| Bend Radius | |
| 12-72 Fibres | 300mm (Installation) / 150mm (Static) |
| 96 Fibres | 310mm (Installation) / 155mm (Static) |
| 144 Fibres | 360mm (Installation) / 180mm (Static) |
| Environmental Characteristics | |
| Temperature – Installation | -10°C to +50°C |
| Temperature – Operation | -40°C to +70°C |
| Temperature – Storage | -40°C to +70°C |
| Compliance | |
| Standards | IEC 60794, ITU-T Optical Fibre Standards |
| RoHS3 Compliant | Yes |
| Single-mode, G.657.A1 | |
| C-LTHS-S7-006-P | High Strength Loose Tube, Single Mode (G.657.A1), 6F, PE Jacket |
| C-LTHS-S7-012-P | High Strength Loose Tube, Single Mode (G.657.A1), 12F, PE Jacket |
| C-LTHS-S7-024-P | High Strength Loose Tube, Single Mode (G.657.A1), 24F, PE Jacket |
| C-LTHS-S7-048-P | High Strength Loose Tube, Single Mode (G.657.A1), 48F, PE Jacket |
| C-LTHS-S7-072-P | High Strength Loose Tube, Single Mode (G.657.A1), 72F, PE Jacket |
| C-LTHS-S7-096-P | High Strength Loose Tube, Single Mode (G.657.A1), 96F, PE Jacket |
| C-LTHS-S7-144-P | High Strength Loose Tube, Single Mode (G.657.A1), 144F, PE Jacket |
