Figure-8 Duplex Fibre Patch Leads, 2mm

Figure-8 duplex patch cords with 2mm round cable, available in multi-mode and single-mode optical fibre types, supporting everything from legacy networks to modern 800G infrastructure.
  • 2mm figure-8 duplex construction jacket
  • Short‑boot for high‑density spaces
  • Support for various fibre types
  • Available with LC, SC, FC, and ST connectors
  • Low insertion loss and high return loss performance
  • Colour-coded LSZH jackets for clear fibre type identification
  • Designed to exceed global standards
Category: ,
ENQUIRE NOW
Share:

Engineered to Outperform

Delivered with Certainty

Procurement Made Simple

Rapid Deployment Ready

Ready To Scale

Compliance Assured

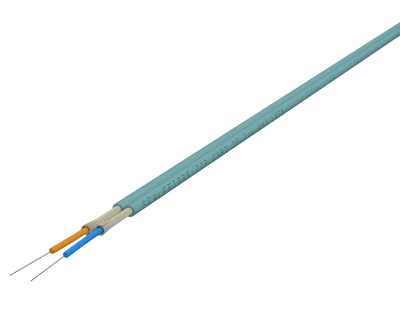

These 2mm figure-8 duplex patch leads feature two optical fibres in a joined-round LSZH jacket, providing durability and flexibility in a compact form factor. Engineered for performance across multimode (OM1, OM4, OM5) and single-mode (OS2) fibre types, they suit a wide range of applications from legacy networks to modern hyperscale environments.

Each assembly is terminated with factory-polished connectors (LC, SC, FC, ST) and tested for insertion loss and return loss to meet or exceed industry standards.

Compact, industry-leading short boot on LC and SC connectors for controlled bend radius in tight spaces. Ideal for patching between panels and equipment in enterprise, carrier, and hyperscale data centre environments.

Intended for MDF and IDF cross-connect patching across the European

FLAP-D datacentre clusters (Frankfurt, London, Amsterdam, Paris, Dublin),

with applications spanning legacy 1G/10G to 100G switch port aggregation

in sovereign-cloud and government-precinct facility builds.

Technical Specifications
Fibre TypeSingle-mode (OS2), Multimode (OM1, OM4, OM5)
ConfigurationDuplex – 2 fibres in 2mm figure-8 LSZH jacket
Connector TypesLC, SC, FC, ST (others on request)
Polish OptionsUPC or APC (SM); UPC standard (MM)
Insertion Loss≤0.12dB Mean, ≤ 0.25dB for 97% (IEC 61755-1 Grade B)
Return Loss≥50dB (UPC SM), ≥60dB (APC SM), ≥35dB (MM) (IEC 61755-1 Grade B)
Jacket MaterialLSZH (Low Smoke Zero Halogen)

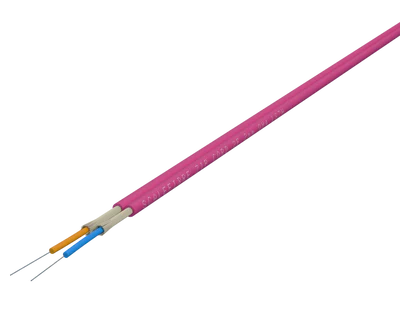

Jacket ColoursYellow (OS2), Orange (OM1), Aqua/Erika Violet (OM4), Lime Green (OM5)
Operating Temperature-20°C to +70°C
ComplianceTIA/EIA-568, IEC 61754, ISO/IEC 11801, AS/CA S008, RoHS, REACH
LC/UPC to LC/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-LC-LC-01M1
PC-S7-Z2-2-LC-LC-02M2
PC-S7-Z2-2-LC-LC-03M3
PC-S7-Z2-2-LC-LC-05M5
PC-S7-Z2-2-LC-LC-10M10
LC/APC to LC/APC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-LCA-LCA-01M1
PC-S7-Z2-2-LCA-LCA-02M2
PC-S7-Z2-2-LCA-LCA-03M3
PC-S7-Z2-2-LCA-LCA-05M5
PC-S7-Z2-2-LCA-LCA-10M10
SC/UPC to SC/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-SC-SC-01M1
PC-S7-Z2-2-SC-SC-02M2
PC-S7-Z2-2-SC-SC-03M3
PC-S7-Z2-2-SC-SC-05M5
PC-S7-Z2-2-SC-SC-10M10
SC/APC to SC/APC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-SCA-SCA-01M1
PC-S7-Z2-2-SCA-SCA-02M2
PC-S7-Z2-2-SCA-SCA-03M3
PC-S7-Z2-2-SCA-SCA-05M5
PC-S7-Z2-2-SCA-SCA-10M10
LC/UPC to SC/APC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-LC-SCA-01M1
PC-S7-Z2-2-LC-SCA-02M2
PC-S7-Z2-2-LC-SCA-03M3
PC-S7-Z2-2-LC-SCA-05M5
PC-S7-Z2-2-LC-SCA-10M10
LC/APC to SC/APC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-LCA-SCA-01M1
PC-S7-Z2-2-LCA-SCA-02M2
PC-S7-Z2-2-LCA-SCA-03M3
PC-S7-Z2-2-LCA-SCA-05M5
PC-S7-Z2-2-LCA-SCA-10M10
LC/APC to SC/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-LCA-SC-01M1
PC-S7-Z2-2-LCA-SC-02M2
PC-S7-Z2-2-LCA-SC-03M3
PC-S7-Z2-2-LCA-SC-05M5
PC-S7-Z2-2-LCA-SC-10M10
LC/UPC to SC/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-LC-SC-01M1
PC-S7-Z2-2-LC-SC-02M2
PC-S7-Z2-2-LC-SC-03M3
PC-S7-Z2-2-LC-SC-05M5
PC-S7-Z2-2-LC-SC-10M10

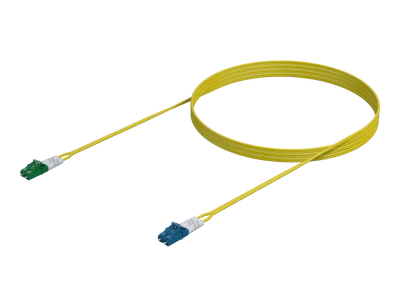

LC/UPC to LC/APC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-LC-LCA-01M1
PC-S7-Z2-2-LC-LCA-02M2
PC-S7-Z2-2-LC-LCA-03M3
PC-S7-Z2-2-LC-LCA-05M5
PC-S7-Z2-2-LC-LCA-10M10
SC/UPC to SC/APC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-SC-SCA-01M1
PC-S7-Z2-2-SC-SCA-02M2
PC-S7-Z2-2-SC-SCA-03M3
PC-S7-Z2-2-SC-SCA-05M5
PC-S7-Z2-2-SC-SCA-10M10
ST/UPC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-ST-ST-01M1
PC-S7-Z2-2-ST-ST-02M2
PC-S7-Z2-2-ST-ST-03M3
PC-S7-Z2-2-ST-ST-05M5
PC-S7-Z2-2-ST-ST-10M10

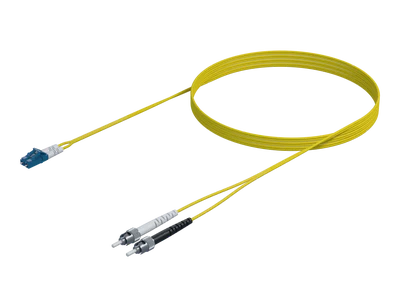

LC/UPC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-LC-ST-01M1
PC-S7-Z2-2-LC-ST-02M2
PC-S7-Z2-2-LC-ST-03M3
PC-S7-Z2-2-LC-ST-05M5
PC-S7-Z2-2-LC-ST-10M10
SC/UPC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-SC-ST-01M1
PC-S7-Z2-2-SC-ST-02M2
PC-S7-Z2-2-SC-ST-03M3
PC-S7-Z2-2-SC-ST-05M5
PC-S7-Z2-2-SC-ST-10M10

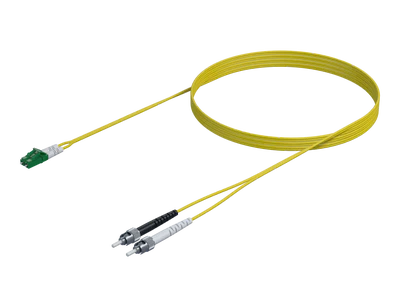

LC/APC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-LCA-ST-01M1
PC-S7-Z2-2-LCA-ST-02M2
PC-S7-Z2-2-LCA-ST-03M3
PC-S7-Z2-2-LCA-ST-05M5
PC-S7-Z2-2-LCA-ST-10M10

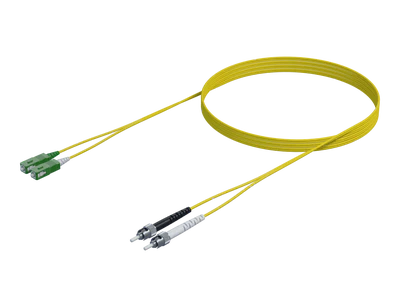

SC/APC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-S7-Z2-2-SCA-ST-01M1
PC-S7-Z2-2-SCA-ST-02M2
PC-S7-Z2-2-SCA-ST-03M3
PC-S7-Z2-2-SCA-ST-05M5
PC-S7-Z2-2-SCA-ST-10M10
LC/UPC to LC/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M4-Z2-2-LC-LC-01M1
PC-M4-Z2-2-LC-LC-02M2
PC-M4-Z2-2-LC-LC-03M3
PC-M4-Z2-2-LC-LC-05M5
PC-M4-Z2-2-LC-LC-10M10
SC/UPC to SC/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M4-Z2-2-SC-SC-01M1
PC-M4-Z2-2-SC-SC-02M2
PC-M4-Z2-2-SC-SC-03M3
PC-M4-Z2-2-SC-SC-05M5
PC-M4-Z2-2-SC-SC-10M10
LC/UPC to SC/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M4-Z2-2-LC-SC-01M1
PC-M4-Z2-2-LC-SC-02M2
PC-M4-Z2-2-LC-SC-03M3
PC-M4-Z2-2-LC-SC-05M5
PC-M4-Z2-2-LC-SC-10M10
ST/UPC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M4-Z2-2-ST-ST-01M1
PC-M4-Z2-2-ST-ST-02M2
PC-M4-Z2-2-ST-ST-03M3
PC-M4-Z2-2-ST-ST-05M5
PC-M4-Z2-2-ST-ST-10M10

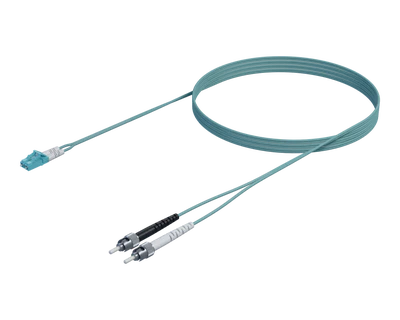

LC/UPC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M4-Z2-2-LC-ST-01M1
PC-M4-Z2-2-LC-ST-02M2
PC-M4-Z2-2-LC-ST-03M3
PC-M4-Z2-2-LC-ST-05M5
PC-M4-Z2-2-LC-ST-10M10
SC/UPC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M4-Z2-2-SC-ST-01M1
PC-M4-Z2-2-SC-ST-02M2
PC-M4-Z2-2-SC-ST-03M3
PC-M4-Z2-2-SC-ST-05M5
PC-M4-Z2-2-SC-ST-10M10
LC/UPC to LC/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M5-Z2-2-LC-LC-01M1
PC-M5-Z2-2-LC-LC-02M2
PC-M5-Z2-2-LC-LC-03M3
PC-M5-Z2-2-LC-LC-05M5
PC-M5-Z2-2-LC-LC-10M10
SC/UPC to SC/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M5-Z2-2-SC-SC-01M1
PC-M5-Z2-2-SC-SC-02M2
PC-M5-Z2-2-SC-SC-03M3
PC-M5-Z2-2-SC-SC-05M5
PC-M5-Z2-2-SC-SC-10M10
LC/UPC to SC/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M5-Z2-2-LC-SC-01M1
PC-M5-Z2-2-LC-SC-02M2
PC-M5-Z2-2-LC-SC-03M3
PC-M5-Z2-2-LC-SC-05M5
PC-M5-Z2-2-LC-SC-10M10
ST/UPC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M5-Z2-2-ST-ST-01M1
PC-M5-Z2-2-ST-ST-02M2
PC-M5-Z2-2-ST-ST-03M3
PC-M5-Z2-2-ST-ST-05M5
PC-M5-Z2-2-ST-ST-10M10
LC/UPC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M5-Z2-2-LC-ST-01M1
PC-M5-Z2-2-LC-ST-02M2
PC-M5-Z2-2-LC-ST-03M3
PC-M5-Z2-2-LC-ST-05M5
PC-M5-Z2-2-LC-ST-10M10
SC/UPC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M5-Z2-2-SC-ST-01M1
PC-M5-Z2-2-SC-ST-02M2
PC-M5-Z2-2-SC-ST-03M3
PC-M5-Z2-2-SC-ST-05M5
PC-M5-Z2-2-SC-ST-10M10
LC/UPC to LC/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M1-Z2-2-LC-LC-01M1
PC-M1-Z2-2-LC-LC-02M2
PC-M1-Z2-2-LC-LC-03M3
PC-M1-Z2-2-LC-LC-05M5
PC-M1-Z2-2-LC-LC-10M10
SC/UPC to SC/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M1-Z2-2-SC-SC-01M1
PC-M1-Z2-2-SC-SC-02M2
PC-M1-Z2-2-SC-SC-03M3
PC-M1-Z2-2-SC-SC-05M5
PC-M1-Z2-2-SC-SC-10M10
LC/UPC to SC/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M1-Z2-2-LC-SC-01M1
PC-M1-Z2-2-LC-SC-02M2
PC-M1-Z2-2-LC-SC-03M3
PC-M1-Z2-2-LC-SC-05M5
PC-M1-Z2-2-LC-SC-10M10
ST/UPC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M1-Z2-2-ST-ST-01M1
PC-M1-Z2-2-ST-ST-02M2
PC-M1-Z2-2-ST-ST-03M3
PC-M1-Z2-2-ST-ST-05M5
PC-M1-Z2-2-ST-ST-10M10
LC/UPC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M1-Z2-2-LC-ST-01M1
PC-M1-Z2-2-LC-ST-02M2
PC-M1-Z2-2-LC-ST-03M3
PC-M1-Z2-2-LC-ST-05M5
PC-M1-Z2-2-LC-ST-10M10
SC/UPC to ST/UPC, 2mm Duplex Figure-8
Part NumberLength (m)
PC-M1-Z2-2-SC-ST-01M1
PC-M1-Z2-2-SC-ST-02M2
PC-M1-Z2-2-SC-ST-03M3
PC-M1-Z2-2-SC-ST-05M5
PC-M1-Z2-2-SC-ST-10M10
