- Breaks out MPO backbone into discrete connectors
- Supports 8F, 12F, and 24F fanouts
- Factory terminated and 100% IL/RL tested
- LSZH and CPR-rated jacket options
- Ideal for transceiver, patch panel, and switch connections
- Simplifies migration from MPO trunks to duplex ports
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

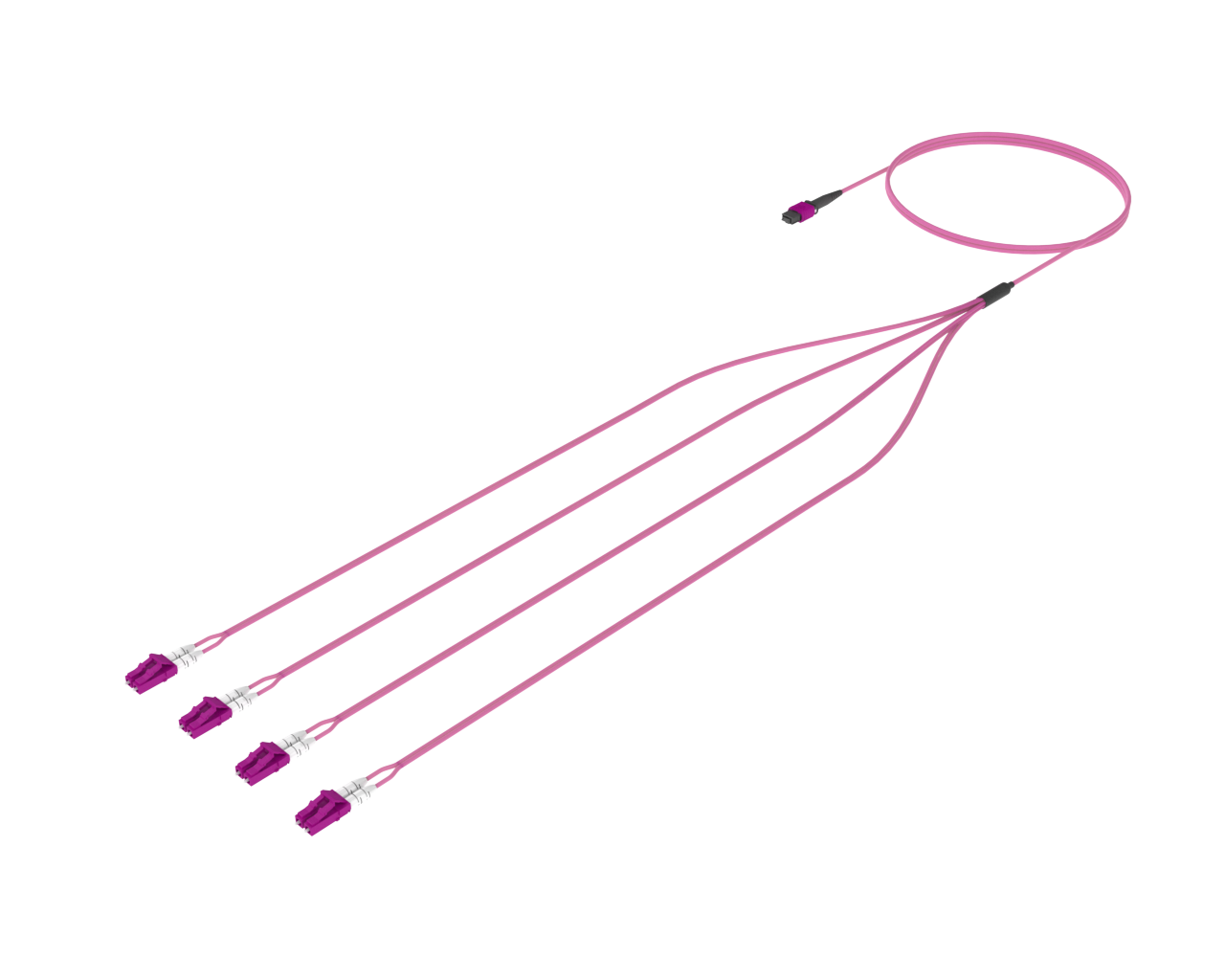

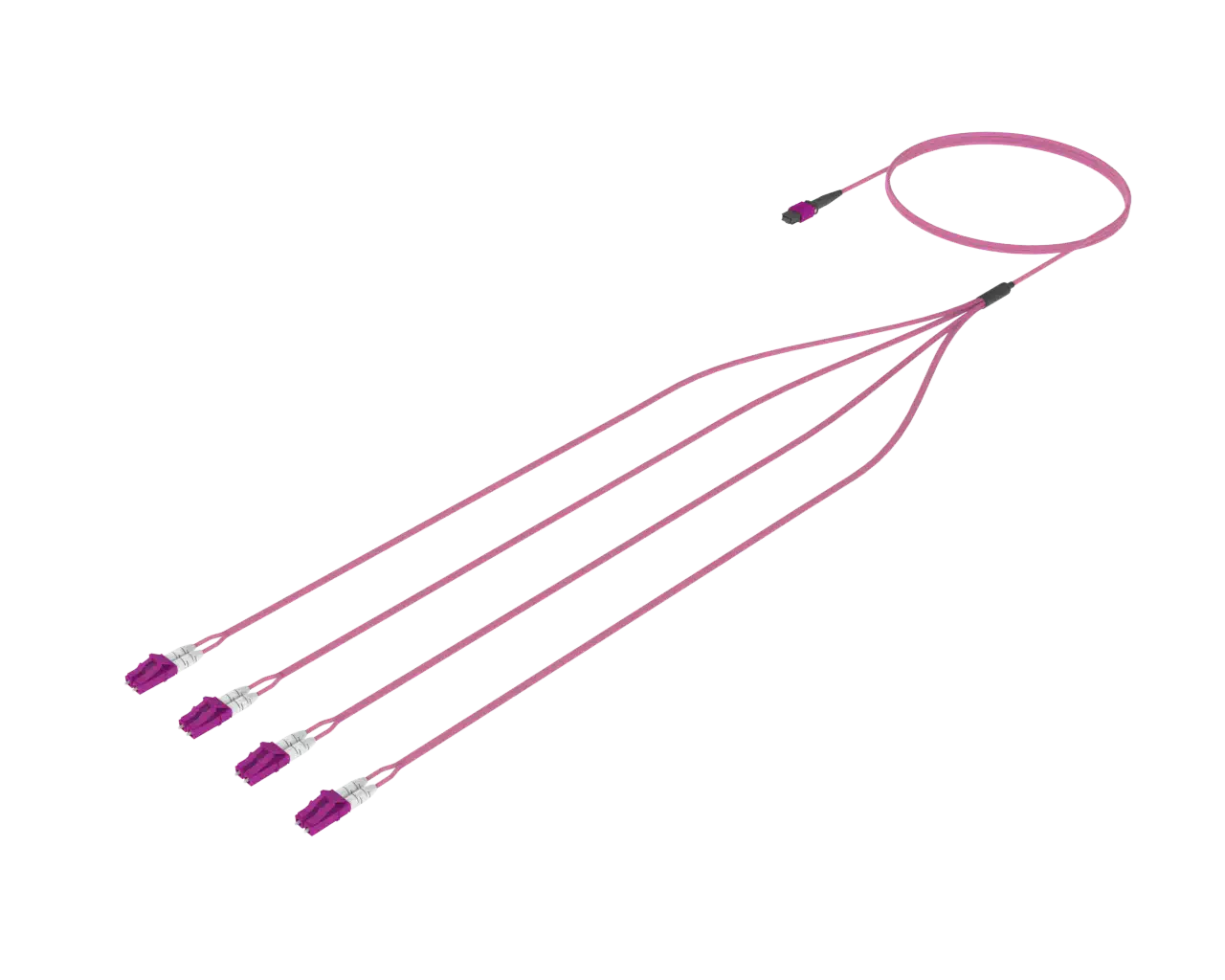

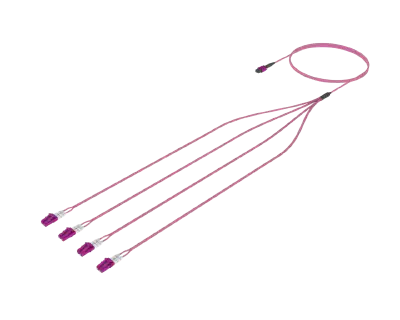

MPO fanout (breakout) cables provide a seamless transition from high-density backbone cabling to equipment interfaces. Each assembly terminates with a ScaleFibre MPO connector at one end and individual LC or SC connectors at the other, enabling direct connection to transceivers, patch panels, or switches.
Available in single-mode OS2 (G.657.A1) and multimode OM3, OM4, or OM5, these fanouts are factory-tested for insertion loss and return loss to ensure reliable performance in high-speed networks. Fibre counts of 8, 12, or 24 are supported with jacket options including LSZH and CPR ratings for diverse installation environments.
Designed for data centres, cloud infrastructure, and enterprise networks, MPO fanouts simplify high-density connectivity while maintaining structured cabling best practices.
| General | |
| Connector Types | ScaleFibre MPO-8/12/24 (male/female) to LC or other connectors (UPC/APC) USConec MTP® |
| Fibre Count Range | 8, 12, or 24 fibres |
| Fibre Type | OS2 (G.657.A1), OM3, OM4, OM5 |
| Polarity | Type A, B or C |
| Cable Specification | |
| Jacket Material | Low Smoke Zero Halogen (LSZH), CPR options available |
| Cable Diameter | 3 mm round trunk, 2.0 mm tails |
| Insertion Loss | LC: ≤0.12dB Mean, ≤ 0.25dB for 97% (IEC 61755-1 Grade B) MPO: ≤0.35 dB |
| Return Loss | LC: ≥50dB (UPC SM), ≥60dB (APC SM), ≥30dB (MM) (IEC 61755-1 Grade B) MPO: ≥60 dB (SM, APC), ≥30 dB (MM) |
| Operating Temperature | -20°C to +70°C |
| Compliance | TIA/EIA-568, RoHS, REACH |

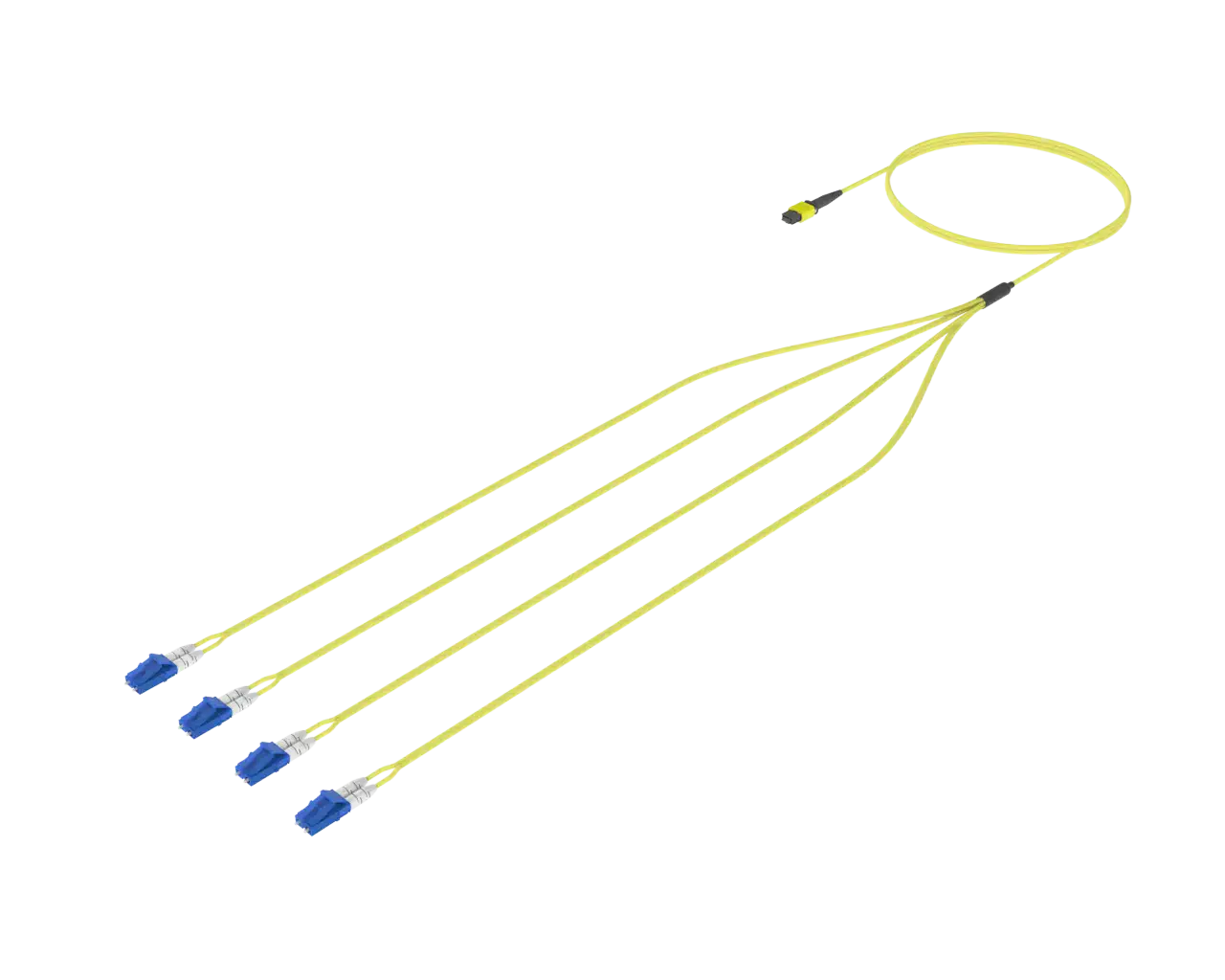

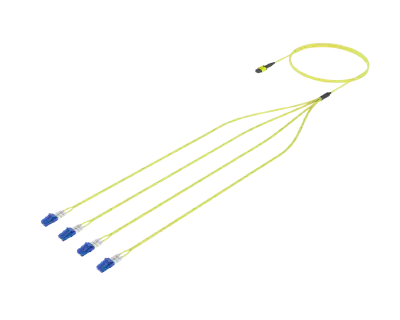

| MPO Fanout Assembly, Single-mode (G.657.A1), 8F, LC–MPOF, Polarity B, LSZH, Yellow Jacket (40GBASE-PSM4 to 4×10G SM or 100GBASE-PSM4 to 4×25G SM) | |
| Part Number | Length (m) |
| MT-S7-R3-8-LC-MPOF-B-01M | 1 |
| MT-S7-R3-8-LC-MPOF-B-02M | 2 |
| MT-S7-R3-8-LC-MPOF-B-03M | 3 |
| MT-S7-R3-8-LC-MPOF-B-05M | 5 |
| MT-S7-R3-8-LC-MPOF-B-10M | 10 |
| MT-S7-R3-8-LC-MPOF-B-15M | 15 |
| MT-S7-R3-8-LC-MPOF-B-20M | 20 |
| MPO Fanout Assembly, Multi-mode (OM3), 8F, LC–MPOF, Polarity B, LSZH, Aqua Jacket (40GBASE-SR4 to 4×10G SR or 100GBASE-SR4 to 4×25G SR) | |
| Part Number | Length (m) |
| MT-M3-R3-8-LC-MPOF-B-01M | 1 |
| MT-M3-R3-8-LC-MPOF-B-02M | 2 |
| MT-M3-R3-8-LC-MPOF-B-03M | 3 |
| MT-M3-R3-8-LC-MPOF-B-05M | 5 |
| MT-M3-R3-8-LC-MPOF-B-10M | 10 |
| MT-M3-R3-8-LC-MPOF-B-15M | 15 |
| MT-M3-R3-8-LC-MPOF-B-20M | 20 |

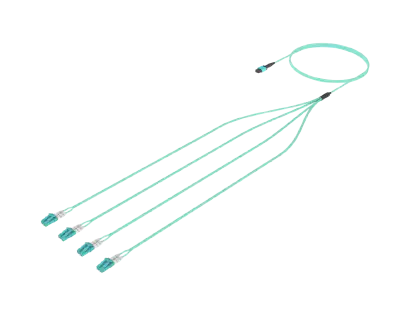

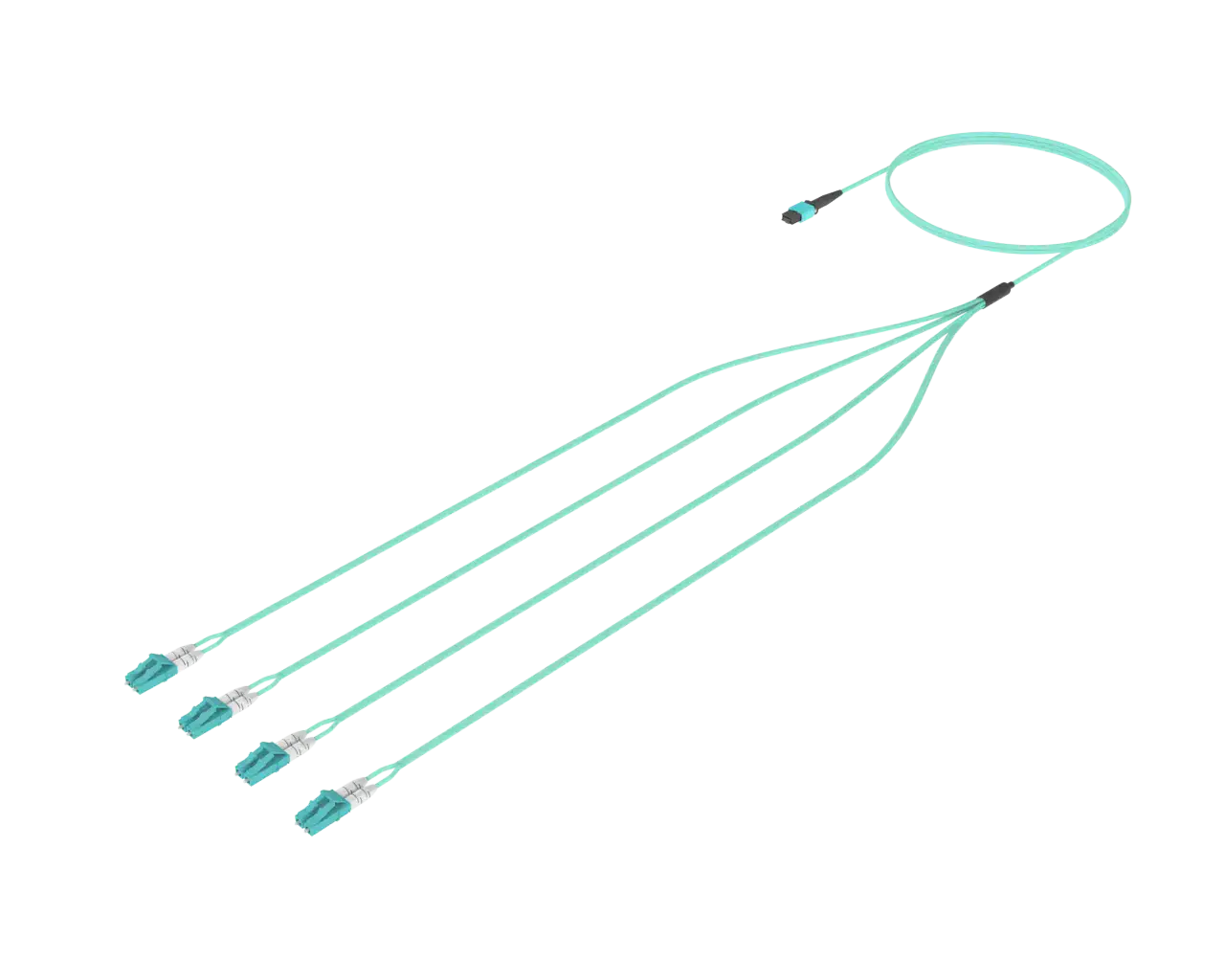

| MPO Fanout Assembly, Multi-mode (OM4), 8F, LC–MPOF, Polarity B, LSZH, Aqua Jacket (40GBASE-SR4 to 4×10G SR or 100GBASE-SR4 to 4×25G SR) | |
| Part Number | Length (m) |
| MT-M4-R3-8-LC-MPOF-B-01M | 1 |
| MT-M4-R3-8-LC-MPOF-B-02M | 2 |
| MT-M4-R3-8-LC-MPOF-B-03M | 3 |
| MT-M4-R3-8-LC-MPOF-B-05M | 5 |
| MT-M4-R3-8-LC-MPOF-B-10M | 10 |
| MT-M4-R3-8-LC-MPOF-B-15M | 15 |
| MT-M4-R3-8-LC-MPOF-B-20M | 20 |
