JetPATH™ air-blown mini loose tube optical cable (12–864F) with PE jacket, FRP strength member and dry core with StaticGEL™ tubes.
- Fibre counts from 12 to 864
- Compact diameters for maximum duct utilisation
- Stranded loose-tube construction for fast, flexible installation by blowing or pulling
- FRP central strength member ensures tensile robustness in long-haul pulls
- Dry core with StaticGEL™ loose tubes for clean, low-mess handling
Engineered to Outperform
Delivered with Certainty
Procurement Made Simple
Rapid Deployment Ready
Ready To Scale
Compliance Assured

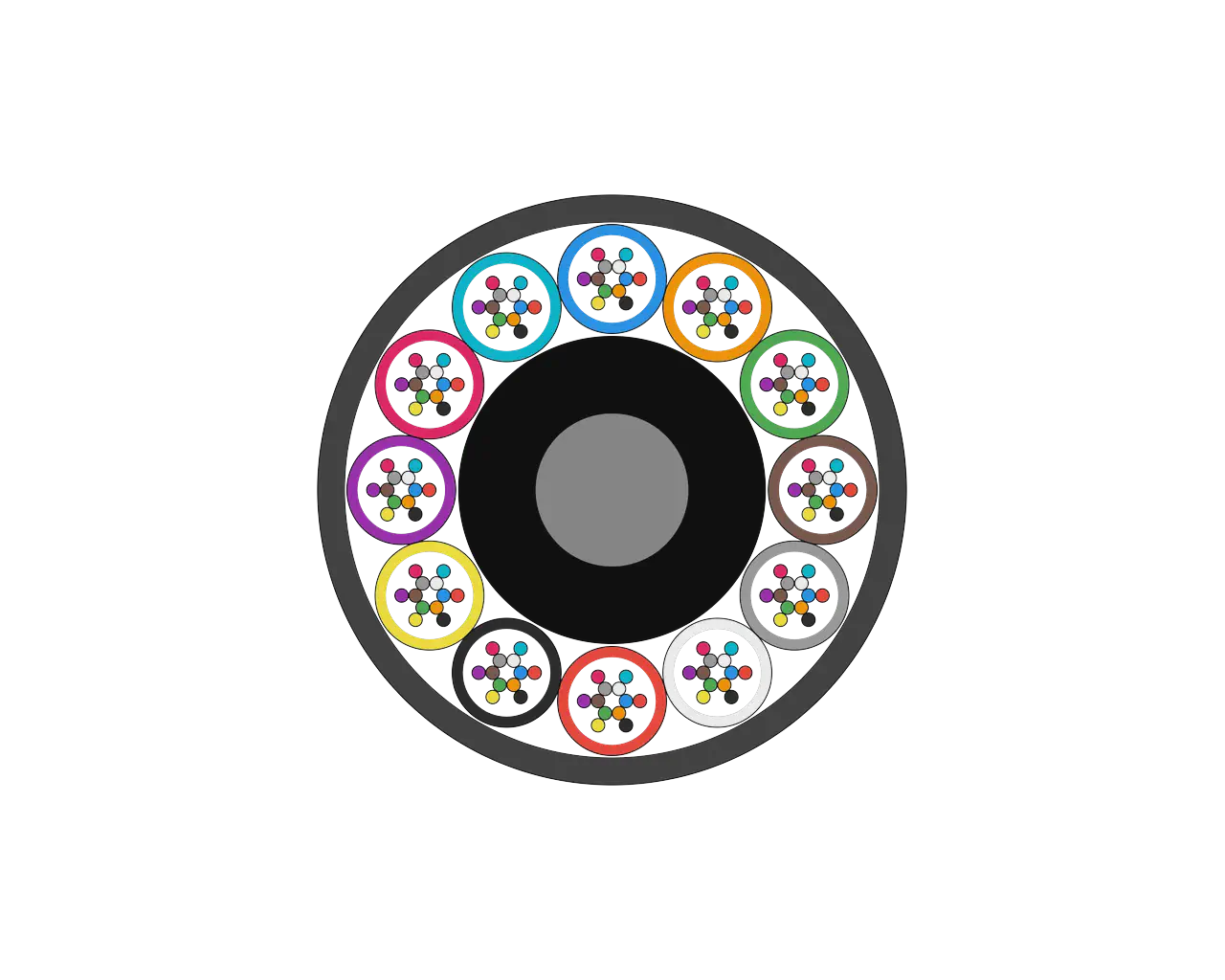

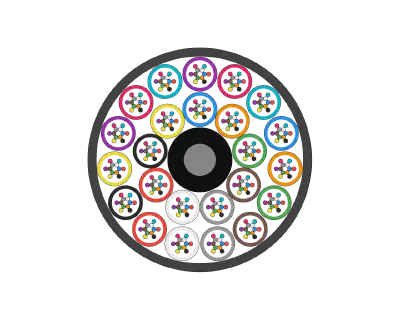

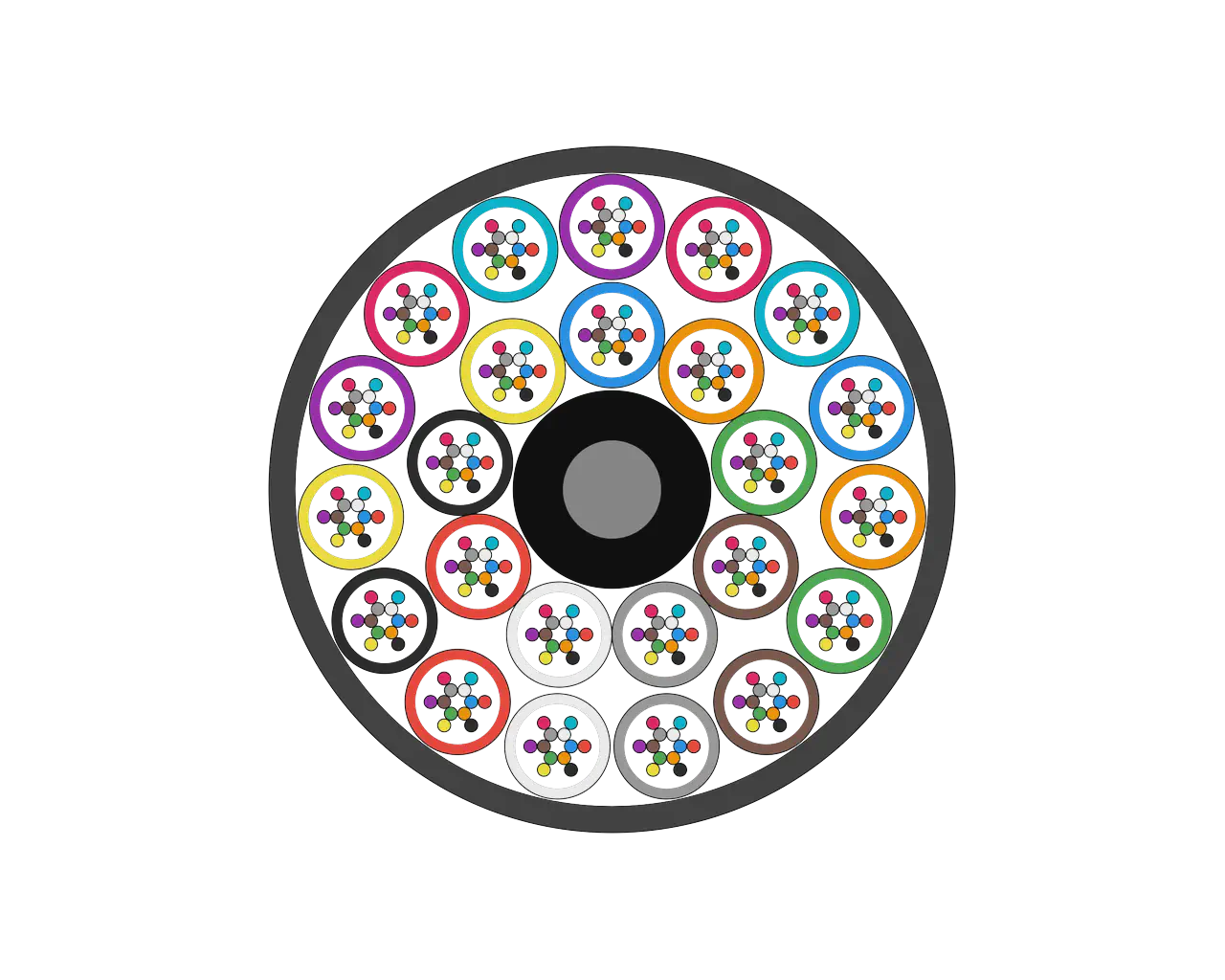

JetPATH™ is ScaleFibre's air-blown mini loose tube optical cable family, engineered for compactness and fast jetted or air-blown installation in congested duct and microduct environments. Fibre counts span 12 up to 864, with diameters as small as 6.3 mm to maximise duct utilisation. A black polyethylene (PE) jacket ensures durability, while an FRP central strength member provides tensile robustness for long-haul pulls and air-blown shots. The dry core with StaticGEL™ water blocking compound within the tubes delivers clean, low-mess handling on site.
JetPATH™ supports installation by air-blowing, jetting, pulling or floating across hyperscale, carrier, enterprise, utility and campus networks. Available with single-mode (G.657.A1 or G.657.A2) and multimode (OM1 / OM3 / OM4 / OM5) fibre options.
| Construction Details | |
| Fibre Count | 12 to 864 fibres |
| Fibre Type | Single-mode G.657.A1 Single-mode G.657.A2 Multimode OM1 Multimode OM3 Multimode OM4 |
| Tube Configuration | Up to 24 loose tubes (12–36 fibres per tube depending on count) |
| Tube Filling | StaticGEL™ technology for clean, fast handling |
| Core Water Blocking | Dry core with water-swellable yarns around central member |
| Strength Member | Central FRP rod (dielectric) |
| Ripcords | Two |
| Jacket | Polyethylene (PE) |
| Cable Dimensions | |
| Outside Diameter | 12F: 6.3 mm 24F: 6.3 mm 48F: 6.3 ± 0.3 mm 72F: 6.3 ± 0.3 mm 144F: 8.3 ± 0.3 mm 288F: 9.8 ± 0.3 mm 432F: 10.9 ± 0.3 mm 864F: 11.6 ± 0.3 mm |
| Weight | 12F: 31 kg/km 24F: 31 kg/km 48F: 33 kg/km 72F: 33 kg/km 144F: 62 kg/km 288F: 82 kg/km 432F: 96 kg/km 864F: 110 kg/km |
| Bend Radius | |
| Minimum Bend Radius (Installation) | 130 mm to 230 mm (depending on fibre count) |
| Minimum Bend Radius (No-Load / Static) | 65 mm to 115 mm (depending on fibre count) |
| Mechanical Characteristics | |
| Tensile Strength (Short Term) | 1,000 N (12–144F) / 2,000 N (288–864F) |
| Crush Resistance | 2,000 N/10 cm |
| Environmental | |
| Operating Temperature | -10 °C to +70 °C |
| Installation Temperature | 0 °C to +50 °C |
| Storage Temperature | -20 °C to +70 °C |
| Compliance | |
| Standards | IEC 60794; AS/CA S008; TIA-598-C; ITU-T optical fibre standards |
| RoHS3 Compliant | Yes |
| Mini Loose Tube Single-mode (G.657.A1) – Standard Fibre Counts | |
| Part Number | Description |
| C-MLT-S7-12-P | JetPATH™ Mini Loose Tube, 12 Fibre, Single-mode (G.657.A1), PE |
| C-MLT-S7-24-P | JetPATH™ Mini Loose Tube, 24 Fibre, Single-mode (G.657.A1), PE |
| C-MLT-S7-48-P | JetPATH™ Mini Loose Tube, 48 Fibre, Single-mode (G.657.A1), PE |
| C-MLT-S7-72-P | JetPATH™ Mini Loose Tube, 72 Fibre, Single-mode (G.657.A1), PE |
| C-MLT-S7-96-P | JetPATH™ Mini Loose Tube, 96 Fibre, Single-mode (G.657.A1), PE |
| C-MLT-S7-144-P | JetPATH™ Mini Loose Tube, 144 Fibre, Single-mode (G.657.A1), PE |
| C-MLT-S7-288-P | JetPATH™ Mini Loose Tube, 288 Fibre, Single-mode (G.657.A1), PE |
| C-MLT-S7-432-P | JetPATH™ Mini Loose Tube, 432 Fibre, Single-mode (G.657.A1), PE |
| C-MLT-S7-864-P | JetPATH™ Mini Loose Tube, 864 Fibre, Single-mode (G.657.A1), PE |
| Mini Loose Tube Single-mode (G.657.A2) – Standard Fibre Counts | |
| Part Number | Description |
| C-MLT-S7A2-12-P | JetPATH™ Mini Loose Tube, 12 Fibre, Single-mode (G.657.A2), PE |
| C-MLT-S7A2-24-P | JetPATH™ Mini Loose Tube, 24 Fibre, Single-mode (G.657.A2), PE |
| C-MLT-S7A2-48-P | JetPATH™ Mini Loose Tube, 48 Fibre, Single-mode (G.657.A2), PE |
| C-MLT-S7A2-72-P | JetPATH™ Mini Loose Tube, 72 Fibre, Single-mode (G.657.A2), PE |
| C-MLT-S7A2-96-P | JetPATH™ Mini Loose Tube, 96 Fibre, Single-mode (G.657.A2), PE |
| C-MLT-S7A2-144-P | JetPATH™ Mini Loose Tube, 144 Fibre, Single-mode (G.657.A2), PE |
| C-MLT-S7A2-288-P | JetPATH™ Mini Loose Tube, 288 Fibre, Single-mode (G.657.A2), PE |
| C-MLT-S7A2-432-P | JetPATH™ Mini Loose Tube, 432 Fibre, Single-mode (G.657.A2), PE |
| C-MLT-S7A2-864-P | JetPATH™ Mini Loose Tube, 864 Fibre, Single-mode (G.657.A2), PE |
| Mini Loose Tube Multimode (OM1) – Standard Fibre Counts | |
| Part Number | Description |
| C-MLT-M1-12-P | JetPATH™ Mini Loose Tube, 12 Fibre, Multimode (OM1), PE |
| C-MLT-M1-24-P | JetPATH™ Mini Loose Tube, 24 Fibre, Multimode (OM1), PE |
| C-MLT-M1-48-P | JetPATH™ Mini Loose Tube, 48 Fibre, Multimode (OM1), PE |
| C-MLT-M1-72-P | JetPATH™ Mini Loose Tube, 72 Fibre, Multimode (OM1), PE |
| C-MLT-M1-96-P | JetPATH™ Mini Loose Tube, 96 Fibre, Multimode (OM1), PE |
| C-MLT-M1-144-P | JetPATH™ Mini Loose Tube, 144 Fibre, Multimode (OM1), PE |
| C-MLT-M1-288-P | JetPATH™ Mini Loose Tube, 288 Fibre, Multimode (OM1), PE |
| C-MLT-M1-432-P | JetPATH™ Mini Loose Tube, 432 Fibre, Multimode (OM1), PE |
| C-MLT-M1-864-P | JetPATH™ Mini Loose Tube, 864 Fibre, Multimode (OM1), PE |
| Mini Loose Tube Multimode (OM3) – Standard Fibre Counts | |
| Part Number | Description |
| C-MLT-M3-12-P | JetPATH™ Mini Loose Tube, 12 Fibre, Multimode (OM3), PE |
| C-MLT-M3-24-P | JetPATH™ Mini Loose Tube, 24 Fibre, Multimode (OM3), PE |
| C-MLT-M3-48-P | JetPATH™ Mini Loose Tube, 48 Fibre, Multimode (OM3), PE |
| C-MLT-M3-72-P | JetPATH™ Mini Loose Tube, 72 Fibre, Multimode (OM3), PE |
| C-MLT-M3-96-P | JetPATH™ Mini Loose Tube, 96 Fibre, Multimode (OM3), PE |
| C-MLT-M3-144-P | JetPATH™ Mini Loose Tube, 144 Fibre, Multimode (OM3), PE |
| C-MLT-M3-288-P | JetPATH™ Mini Loose Tube, 288 Fibre, Multimode (OM3), PE |
| C-MLT-M3-432-P | JetPATH™ Mini Loose Tube, 432 Fibre, Multimode (OM3), PE |
| C-MLT-M3-864-P | JetPATH™ Mini Loose Tube, 864 Fibre, Multimode (OM3), PE |
| Mini Loose Tube Multimode (OM4) – Standard Fibre Counts | |
| Part Number | Description |
| C-MLT-M4-12-P | JetPATH™ Mini Loose Tube, 12 Fibre, Multimode (OM4), PE |
| C-MLT-M4-24-P | JetPATH™ Mini Loose Tube, 24 Fibre, Multimode (OM4), PE |
| C-MLT-M4-48-P | JetPATH™ Mini Loose Tube, 48 Fibre, Multimode (OM4), PE |
| C-MLT-M4-72-P | JetPATH™ Mini Loose Tube, 72 Fibre, Multimode (OM4), PE |
| C-MLT-M4-96-P | JetPATH™ Mini Loose Tube, 96 Fibre, Multimode (OM4), PE |
| C-MLT-M4-144-P | JetPATH™ Mini Loose Tube, 144 Fibre, Multimode (OM4), PE |
| C-MLT-M4-288-P | JetPATH™ Mini Loose Tube, 288 Fibre, Multimode (OM4), PE |
| C-MLT-M4-432-P | JetPATH™ Mini Loose Tube, 432 Fibre, Multimode (OM4), PE |
| C-MLT-M4-864-P | JetPATH™ Mini Loose Tube, 864 Fibre, Multimode (OM4), PE |
